【引言】
很多养殖企业在选购鸡粪烘干设备时，第一反应会优先考虑传统滚筒烘干机。滚筒设备应用广、市面报价五花八门，但大量真实项目工况反馈：把通用滚筒拿来烘干鸡粪，往往会出现粘壁糊料、堵料停机、干湿不均等一系列棘手问题。
鸡粪属于特殊高湿黏滞物料，并不是所有烘干设备都能适配。同样是烘干，普通滚筒与卧式闪蒸烘干机，面对鸡粪物料，实际生产效果差距巨大。今天就从物料特性、设备结构、运行成本、真实工况对比，拆解鸡粪烘干设备选型误区，帮养殖场选对真正适配鸡粪的烘干装备。
When many farming enterprises purchase chicken manure drying equipment, the first reaction will give priority to traditional drum dryers. Drum equipment is widely used and widely quoted in the market. However, a large number of actual project working conditions are fed back: when the general roller is used to dry chicken manure, a series of tough problems such as sticky paste, blockage, shutdown and uneven drying and wetting will often occur.
The chicken droppings are special high humidity viscous materials and not all drying equipment are suitable. It is also drying. Ordinary roller and horizontal flash dryer face chicken manure materials, and the actual production effect is greatly different. By comparing the material characteristics, equipment structure, operation cost and actual working condition, disassemble the wrong selection of chicken manure drying equipment and help the farms to select the proper drying equipment for chicken manure.
一、滚筒烘干鸡粪通病：粘壁、堵料、烘干不均、频繁停机
传统单筒 / 三回程滚筒烘干机，设计初衷更多面向矿渣、木屑、煤泥这类松散物料。直接拿来处理鲜鸡粪，会暴露出难以根治的行业通病，也是很多项目投产之后才踩下的大坑。
1.严重粘壁糊筒 鲜鸡粪黏性大，进入滚筒之后容易黏附在筒体内壁和扬料板上，越积越厚，形成料层结壳。结壳之后热风无法穿透，烘干效率直线下降，筒内局部高温还会造成鸡粪焦糊、发臭。
2.频繁堵料，被迫停机清理 结块鸡粪无法被有效打散，大块物料堆积在筒体内部、进出料口，极易造成堵料。生产被迫中断，需要人工进筒铲除黏附物料，清理耗时费力，无法实现长时间连续运行。
3.烘干效果两极分化，出料干湿不均 滚筒依靠扬料板简单抄料，抱团的鸡粪内部接触不到热风，出现一部分已经烤焦干透，另一部分依旧湿黏成团，外干内湿现象突出。出料含水率波动大，成品品质不稳定，达不到资源化利用标准。
4.运维负担重，故障隐患多 粘壁结块属于持续性问题，不是一次性调试就能解决。需要频繁停机清筒，密封件、托滚、扬料板磨损加快，维修频次高。很多养殖场滚筒设备名义产能很高，实际有效生产时间大打折扣，名义产能和实际产能严重不符。
不少客户前期只对比采购价格，忽略物料适配性，设备上马之后才发现天天修、经常停，环保达标、资源化收益更是无从谈起。
Traditional single/triple return drum dryers are designed primarily for loose materials such as slag, wood chips and coal slime. Direct use of fresh chicken manure will expose common industrial problems that are difficult to eradicate, and it is also a big pit that many projects step on after they are put into production.
Serious adhesion: fresh chicken manure in the barrel is sticky, easy to adhere to the inner wall of the barrel and the lifting plate after entering the roller, the thicker the thicker the thicker the layer is, and the material layer will form a crust. The hot air cannot penetrate after the shell is formed, the drying efficiency declines straightly, and the local high temperature in the barrel will cause the chicken stool to be burnt and smell.
Frequent blockage, forced shutdown to clean caked chicken manure can not be effectively dispersed, and large pieces of materials are stacked inside the cylinder and at the inlet and outlet, which is very easy to cause blockage. The production is forced to be interrupted, and it is necessary to manually feed the drum to remove the adhesive materials. The cleaning is time-consuming and labor-intensive, and the long-term continuous operation cannot be realized.
The drying effect is extremely different. The drum with uneven dry and wet discharging relies on the lifting plate for simple material copying. The inside of the bunched chicken stool cannot contact the hot air, and a part of the stool has been scorched and dried, while the other part is still wet and sticky, and the phenomenon of dry outside and wet inside is prominent. The water content of the discharge fluctuates greatly, and the finished product quality is unstable, which cannot reach the recycling standard.
The operation and maintenance is heavy, and the hidden trouble of failure is a continuous problem, which can not be solved by one-time commissioning. Frequent shutdown and cleaning are required, wearing of seals, rollers and lifting plates is accelerated, and maintenance frequency is high. The nominal capacity of roller equipment in many farms is very high, the actual effective production time is greatly reduced, and the nominal capacity is seriously inconsistent with the actual capacity.
Many customers only compare the purchase price in the early stage, and ignore the adaptability of materials. After the equipment is put into operation, they find that it is necessary to repair and stop the equipment every day, and it is impossible to talk about environmental protection compliance and recycling benefits.
二、肉鸡粪、蛋鸡粪含水率高、粘性强的物料特性分析
选型的核心，是读懂物料本身。肉鸡粪、蛋鸡粪二者特性还存在明显差异，这也是鸡粪烘干区别于其他物料烘干的关键。
·蛋鸡粪：混合大量鸡舍冲洗水，含水率普遍70%-80%，胶体黏性极强，容易揉成胶团，极易粘附设备内壁；有机质含量高，堆放短时间就会快速发酵升温，产生氨气，不适合长时间堆存等待预处理。
·肉鸡粪：掺杂垫料、羽毛，物料成分复杂，大小混杂，既有黏糊粪浆，也有纤维结块，物料组分不均匀，普通滚筒很难实现均匀换热。
鸡粪共性难点：高湿、高黏、易结块、易发酵，不能长时间堆置预干。这类物料，需要设备具备强制打散破碎能力，而不是仅仅依靠筒体转动扬料。通用滚筒缺少主动打散结构，只能被动翻动物料，面对抱团黏糊的鸡粪，先天结构上就存在短板。想要稳定生产，不能拿通用设备硬套鸡粪工况，必须选用针对性研发的专用机型。
Traditional single/triple return drum dryers are designed primarily for loose materials such as slag, wood chips and coal slime. Direct use of fresh chicken manure will expose common industrial problems that are difficult to eradicate, and it is also a big pit that many projects step on after they are put into production.
Serious adhesion: fresh chicken manure in the barrel is sticky, easy to adhere to the inner wall of the barrel and the lifting plate after entering the roller, the thicker the thicker the thicker the layer is, and the material layer will form a crust. The hot air cannot penetrate after the shell is formed, the drying efficiency declines straightly, and the local high temperature in the barrel will cause the chicken stool to be burnt and smell.
Frequent blockage, forced shutdown to clean caked chicken manure can not be effectively dispersed, and large pieces of materials are stacked inside the cylinder and at the inlet and outlet, which is very easy to cause blockage. The production is forced to be interrupted, and it is necessary to manually feed the drum to remove the adhesive materials. The cleaning is time-consuming and labor-intensive, and the long-term continuous operation cannot be realized.
The drying effect is extremely different. The drum with uneven dry and wet discharging relies on the lifting plate for simple material copying. The inside of the bunched chicken stool cannot contact the hot air, and a part of the stool has been scorched and dried, while the other part is still wet and sticky, and the phenomenon of dry outside and wet inside is prominent. The water content of the discharge fluctuates greatly, and the finished product quality is unstable, which cannot reach the recycling standard.
The operation and maintenance is heavy, and the hidden trouble of failure is a continuous problem, which can not be solved by one-time commissioning. Frequent shutdown and cleaning are required, wearing of seals, rollers and lifting plates is accelerated, and maintenance frequency is high. The nominal capacity of roller equipment in many farms is very high, the actual effective production time is greatly reduced, and the nominal capacity is seriously inconsistent with the actual capacity.
Many customers only compare the purchase price in the early stage, and ignore the adaptability of materials. After the equipment is put into operation, they find that it is necessary to repair and stop the equipment every day, and it is impossible to talk about environmental protection compliance and recycling benefits.
三、卧式闪蒸：打散+ 快速脱水+ 回流复干专属工艺优势
金万泓卧式闪蒸烘干机，专门针对鸡粪高黏高湿的痛点开发，核心逻辑不再是缓慢滚筒扬料烘干，而是强制打散破碎、快速高温换热、回流复干补稳水分一套组合工艺。
1.内置高速破碎打散机构，从根源破解粘团结块 湿鸡粪进入主机，立刻经过高速转子持续冲击打散，胶团、粪块被撕裂粉碎，把抱团黏连的鸡粪打散成细小颗粒。每一粒物料充分暴露在热风当中，解决大块物料内部接触不到热风的难题，大幅减少粘壁糊料概率，鲜鸡粪可以直接进料，不需要复杂预处理。
2.快速闪蒸脱水，快速带走内部水分 高温热风与细碎化鸡粪充分混合，采用快速换热模式，水分快速汽化析出。物料受热时间短，避免局部长时间高温焦糊，既保障脱水效率，又减少有机质过度损耗，烘干成品养分保留更好。
3.回流复干工艺，稳定出料含水率 设备配置物料回流复干系统，未达标的湿料自动回流主机再次处理，不会直接排出成品。规避“外干内湿”，让整批出料含水率保持稳定，可精准控制成品水分，干料松散均匀，直接满足有机肥原料、燃料原料使用标准。
4.全系统密闭负压运行 上料+打散+闪蒸+出料全程密闭负压，臭气废气集中收集处理，无臭气外溢，兼顾生产效率与环保要求，适配粪污无害化处置要求。
简单对比：滚筒是“把物料翻来翻去慢慢烤”；卧式闪蒸是 “先打碎再快速脱水，不合格物料二次复烘”，工艺路线完全不一样。
Jin Wanhong horizontal flash dryer is specially developed for the pain point of high viscosity and high humidity of chicken manure. The core logic is no longer the slow drum material drying, but a set of combined process of forced crushing, fast high temperature heat exchange, reflux drying and stabilization of water.
Built-in high-speed crushing and dispersing mechanism is used to break caked wet chicken manure from the root and enter the host, which is immediately broken by continuous impact of high-speed rotor. The rubber ball and clod are torn and crushed to disperse caked chicken manure into fine particles. Each piece of material is fully exposed to hot air to solve the problem that large pieces of material cannot contact the hot air inside, greatly reduce the probability of sticky paste, and fresh chicken manure can be directly fed without complex pretreatment.
Quickly flash and dehydrate, quickly take away the internal water, fully mix the high-temperature hot air with the finely crushed chicken manure, adopt the fast heat exchange mode, and quickly evaporate and separate out the water. The materials are heated for a short time to avoid long-time high-temperature burning, which not only ensures the dewatering efficiency, but also reduces the excessive loss of organic matter, and the dried finished products have better nutrient retention.
Reflux and re-drying process: the equipment for stabilizing the water content of the discharged material is equipped with a material return and re-drying system. The wet materials not meeting the standard will be automatically returned to the host for re-treatment, and the finished products will not be directly discharged. Avoid "dry outside and wet inside", keep the water content of the whole batch of discharging materials stable, accurately control the water content of finished products, loosen and even dry materials, and directly meet the use standards of organic fertilizer raw materials and fuel raw materials.
The whole system operates under closed negative pressure and is loaded+dispersed+flashed+discharged under closed negative pressure in the whole process. The odor and waste gas are collected and treated in a centralized manner, without odor spillover. In consideration of the production efficiency and environmental protection requirements, it is suitable for the harmless disposal of manure.
Simple comparison: the roller is to "turn over the materials and slowly bake them"; Horizontal flash evaporation is a process of "crushing first and then rapid dehydration, secondary drying of unqualified materials", with totally different process routes.

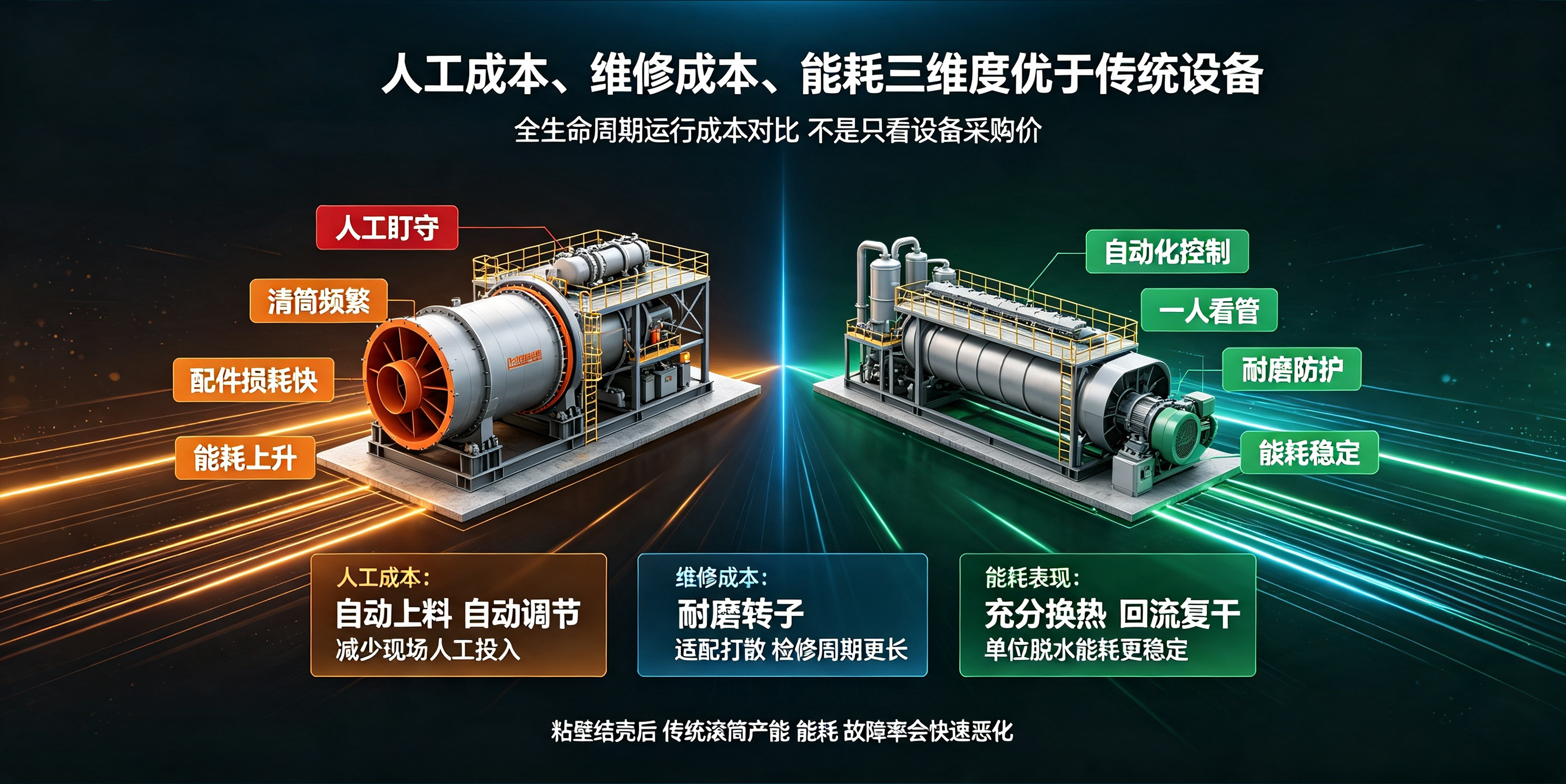

四、人工成本、维修成本、能耗三维度优于传统设备
设备好不好，不能只看购机价，要算全生命周期运行成本。我们从人工、维修、能耗三个核心维度做工况对比。
✅人工成本 传统滚筒烘干鸡粪：需要专人盯守，一旦粘壁堵料就要停机人工清筒，每班需要配置人员处理堵料、清垢；卧式闪蒸：智能自动化闭环控制，湿料螺旋自动上料，回流系统自动调节，无需频繁停机清理，一人可看管整套产线，大幅减少现场人工投入。
✅维修维护成本 滚筒处理鸡粪：扬料板、筒体内壁持续粘料腐蚀磨损，密封件损耗快，清筒、补焊、更换配件频次高，备件消耗大；
卧式闪蒸：转子做耐磨防护处理，打散机构适配粪料工况，减少粘壁结壳带来的附加磨损，非故障状态下可长时间连续运行，检修周期更长，备件更换更少。
✅能耗表现 滚筒因为粘壁结壳后热交换效率持续下降，越往后生产，单位成品能耗越高；卧式闪蒸物料被充分打散，热风和物料接触充分，换热效率高，配合回流复干系统，单位脱水能耗更稳定，不会随着生产时间拉长出现能耗飙升。
提示：滚筒新机刚投产效果尚可，运行一段时间粘壁结壳之后，产能、能耗、故障率会快速恶化，这也是很多项目后期踩坑的关键点。
If the equipment is in good condition, do not just look at the purchase price, but calculate the operation cost of the whole life cycle. We compare working conditions from three core dimensions: labor, maintenance and energy consumption.
✅ Manual cost: the traditional drum is used to dry chicken manure: special personnel are required to watch over, once the wall is stuck and blocked, the machine shall be stopped and the drum shall be manually cleaned, and each shift shall be provided with personnel to handle the blockage and dirt; Horizontal flash: intelligent automatic closed-loop control, automatic feeding of wet material screw, automatic regulation of reflux system, no need for frequent shutdown and cleaning, one person can take care of the whole production line, greatly reducing on-site manual input.
✅ Repair and maintenance cost Drum treatment of chicken manure: lifting plate and inner wall of barrel are continuously corroded and worn by sticky materials, sealing parts are quickly worn out, and the frequency of cleaning, repair welding and replacement of accessories is high, and the consumption of spare parts is large;
Horizontal flash: the rotor is provided with wear-resistant protection treatment, and the dispersing mechanism is suitable for the working condition of manure to reduce the additional wear caused by the sticky shell. It can operate continuously for a long time under non-fault conditions, with longer maintenance period and less replacement of spare parts.
✅ The energy consumption shows that the heat exchange efficiency of the roller continues to decline after the shell is adhered to the wall, and the energy consumption per unit finished product is higher when the roller is produced later; The horizontal flash materials are fully dispersed, the hot air and materials are fully contacted, the heat exchange efficiency is high, and the unit dehydration energy consumption is more stable with the backflow and re-drying system, and the energy consumption will not rise with the production time.
Note: The effect of the new roller machine just put into production is good. After the operation for a period of time, the capacity, energy consumption and failure rate will deteriorate rapidly, which is also the key point of many projects in the later stage.
五、连续生产不停机，适合规模化养殖产业园
对于规模化鸡场、养殖产业园、区域性粪污集中处置中心，设备连续运行能力直接决定整体项目收益与环保考核。
卧式闪蒸整套产线支持24 小时不间断连续作业，鲜鸡粪随来随处理，不用大量囤粪，规避场内鸡粪堆积发酵、异味扩散的环保风险。设备布局紧凑，老厂改造、新建产业园项目都可以灵活适配；可对接生物质热风炉、天然气、余热等多种热源；配套完整除尘除臭尾气系统，工艺资料齐全，满足环评验收要求。
不管是单场自用粪污处置，还是承接周边多家养殖场集中处理鸡粪，都可以通过配置不同规格机组，匹配对应的日处理吨位。避免设备频繁停机，才可以真正实现粪污稳定减量化、无害化、资源化，把鸡粪转化为可销售的干料产品。
选型忠告：不要拿设备采购价格当做第一判断标准
For large-scale chicken farm, breeding industrial park and regional fecal sewage centralized disposal center, the continuous operation capacity of equipment directly determines the overall project income and environmental protection assessment.
The whole set of horizontal flash evaporation production line supports continuous operation for 24 hours. Fresh chicken manure can be treated at any time, without large amount of manure storage, so as to avoid the environmental risks of stacking and fermentation of chicken manure and diffusion of odor in the field. The equipment layout is compact, and the old plant transformation and new industrial park projects can be flexibly adapted; It can be connected to biomass hot blast furnace, natural gas, waste heat and other heat sources; Complete dedusting and deodorization tail gas system is provided, with complete process data, meeting the requirements of environmental impact assessment and acceptance.
Whether it is a single field for its own use of manure disposal, or to undertake the centralized treatment of chicken manure by a number of surrounding farms, the corresponding daily treatment tonnage can be matched by configuring units of different specifications. Avoid frequent shutdown of the equipment, so as to truly realize the stable reduction, harmlessness and recycling of manure, and convert chicken manure into marketable dry products.
Type selection advice: do not take the equipment purchase price as the first judgment standard
结语
鸡粪烘干，不是简单把水烤干就完事，更要面对高黏结块、易发酵、环保管控多重现实工况。传统滚筒有它的适用领域，但面对蛋鸡粪、肉鸡粪这类特殊粪污物料，结构工艺上存在难以逾越的短板。卧式闪蒸凭借强制打散、瞬时脱水、回流复干的专属工艺，解决鸡粪烘干最头疼的粘壁、堵料、干湿不均难题。
选对专用机型，才能做到少停机、低运维、出料稳定，真正实现粪污无害化资源化，帮助养殖场避开设备选型大坑。
The chicken manure drying is not just to dry the water, but also to face multiple realistic working conditions such as high caking, easy fermentation and environmental protection control. The traditional roller has its application field, but in the face of special manure materials such as chicken manure and broiler manure, there are insurmountable shortcomings in structure and process. With the exclusive process of forced dispersion, instantaneous dehydration and return drying, the horizontal flash evaporation solves the most troublesome problems in chicken manure drying, such as wall adhesion, material blockage and uneven drying and wetting.
Select the right special model to achieve less shutdown, low operation and maintenance, stable discharge, truly realize the harmless recycling of manure, and help the farm avoid the large pit of equipment selection.
