【引言】
很多养殖场烘干设备频频翻车：设备总堵料、粪料粘满筒壁、烘干后外干内湿、成品干湿差距大、能耗居高不下。大部分人以为是操作问题、物料问题，真正的核心原因是：工艺选错了。
鸡粪属于典型高湿、高粘、易结块物料，根本不适合传统静态滚筒烘干。想要彻底解决烘干痛点，必须跳出静态烘干思维，看懂卧式闪蒸动态流化脱水工艺的核心优势，从根源解决养殖粪污烘干难题。
Many farms suffer frequent failures with their drying equipment: persistent material clogging, manure sticking heavily to drum walls, products dry on the outside yet wet inside, inconsistent moisture levels in finished output, and persistently high energy consumption. Most operators attribute these issues to improper operation or raw‑material properties, but the real root cause lies in selecting the wrong process.
Chicken manure is a typical high‑moisture, high‑viscosity, caking‑prone feedstock and fundamentally unsuitable for conventional static rotary‑drum drying. To resolve drying pain points thoroughly, it is necessary to move beyond static‑drying thinking and understand the core advantages of the horizontal flash dynamic fluidized‑bed dehydration process, so as to tackle livestock manure‑drying challenges at source.
一、行业核心误区：为什么静态滚筒烘不好高粘粪污？
传统滚筒烘干机的工作逻辑是静态翻滚换热：依靠筒体转动带动物料跌落、堆积，缓慢接触热风烘干。这种工艺只适配砂石、粮食等松散、低粘、低含水物料，面对养殖高粘粪污天生存在工艺缺陷。
高粘粪污三大烘干通病，全部来自静态工艺短板：
1. 极易粘壁糊料：含水率80%-90%的鲜粪粘性极强，堆积翻滚过程中牢牢粘在筒壁和扬料板上，越积越厚，必须频繁停机人工清理，无法连续生产；
2. 堵料卡机频发：结块粪团无法打散，大块湿料堆积堵塞出料口、风道，设备故障率高，有效生产时长大幅缩减；
3. 烘干严重不均：贴壁物料长期高温烘烤焦糊，中心粪团热风无法穿透，形成外干内湿的夹生料，成品品质参差不齐，无法达标资源化利用标准。
简单来说：不是设备吨位不够，是静态工艺适配不了高粘粪污，强行使用只会年年返工、年年亏损。
I. Core Industry Misconception: Why Static Rotary Drums Perform Poorly with High‑viscosity Manure
Conventional rotary dryers operate on the principle of static tumbling heat exchange: the rotating drum lifts and drops material, which accumulates and comes into slow contact with hot air for drying. This process works well only for loose, low‑viscosity, low‑moisture materials such as sand, gravel and grain. It has inherent process‑level flaws when handling highly‑viscous livestock manure.
Three common drying problems with high‑viscosity manure all stem from weaknesses in static processing:
Severe wall sticking and material caking: Fresh manure with 80%‑90% moisture content is extremely sticky. During tumbling, it adheres firmly to drum walls and lifting plates, building up thick deposits. Frequent shutdowns for manual cleaning are required, making continuous production impossible.
Frequent clogging and jamming: Caked manure lumps cannot be broken apart. Large wet masses block discharge outlets and air ducts, driving high failure rates and drastically shortening effective production hours.
Severely uneven drying: Material stuck against the wall is scorched under prolonged high‑temperature heating, while hot air cannot penetrate central manure clumps, resulting in half‑cooked output that is dry externally yet wet internally. Finished products show inconsistent quality and fail to meet standards for resource‑oriented utilization.
Simply put: insufficient equipment tonnage is not the problem. Static processes are incompatible with high‑viscosity manure. Forced application only leads to repeated rework and sustained annual losses.
二、核心工艺拆解：卧式闪蒸四大技术，一体化解决烘干难题
金万泓卧式闪蒸烘干机，彻底颠覆传统静态烘干模式，搭载强力打散+热风悬浮+梯度烘干+瞬时灭菌四大一体化核心工艺，专门针对鸡鸭粪等高粘疑难物料研发，从原理上杜绝烘干弊端。
1. 强力机械打散工艺——破解结块根源
设备内置高速耐磨打散转子，高湿结块鲜粪进入腔体瞬间，被高速剪切、撕裂、粉碎，彻底打散大块粪团，将抱团湿料拆解为细微颗粒。从源头解决物料结块、堆积问题，为均匀脱水打下基础，彻底告别堵料、积料隐患。
2. 热风悬浮流化工艺——360°均匀换热
高温热风以切线高速进入腔体，形成旋转热风场，打散后的细小粪料颗粒被热风全程托起，处于悬浮流化状态。物料不堆积、不贴壁，每一颗颗粒都能与热风全方位充分接触，换热效率远超传统静态翻滚烘干。
3. 梯度温控烘干工艺——精准控湿不夹生
腔体内部形成科学梯度温度场，物料随气流逐级脱水、逐级控温，快速蒸发表面水分与内部游离水。全程温度可控、风速可调，避免局部高温焦料、低温烘不干的问题，实现脱水均匀稳定。
4. 高温瞬时灭菌工艺——烘干合规双达标
依托高温瞬时烘干原理，数秒内完成物料脱水的同时，彻底杀灭粪污中的虫卵、致病菌、发酵菌群，杜绝物料二次发酵、发霉异味。既实现无害化处理，又完整保留有机质养分，契合粪污资源化合规标准。
II. Core Process Breakdown: Four Key Technologies of Horizontal Flash Drying for Integrated Drying‑problem Resolution
Jinwanhong horizontal flash dryers completely overturn traditional static drying. Integrating four core technologies — high‑intensity material disintegration, hot‑air suspension, gradient drying and instantaneous high‑temperature sterilization — the equipment is purpose‑developed for difficult high‑viscosity feedstock such as chicken and duck manure, eliminating drying‑related drawbacks at the principle level.
High‑power mechanical disintegration — eliminating caking at source High‑speed wear‑resistant disintegration rotors inside the chamber subject incoming caked high‑moisture fresh manure to high‑speed shearing, tearing and pulverization. Large manure clumps are fully broken down into fine particles. Material caking and accumulation are prevented from the outset, laying the foundation for uniform dehydration and removing risks of clogging and material build‑up.
Hot‑air suspension fluidization — 360‑degree uniform heat exchange High‑temperature hot air enters the chamber tangentially at high velocity and forms a swirling hot‑air field. Disintegrated fine manure particles are fully suspended and fluidized by the airflow. Materials neither accumulate nor stick to walls. Every particle comes into full‑range contact with hot air, delivering heat‑exchange efficiency far superior to conventional static tumble drying.
Gradient temperature‑controlled drying — precise moisture regulation avoiding half‑cooked output A scientifically designed gradient temperature field is established within the chamber. Materials undergo staged dehydration and temperature adjustment as they travel with the airflow, rapidly releasing surface moisture and internal free water. Temperatures and wind speeds are fully adjustable, preventing scorching from local overheating or incomplete drying caused by insufficient heat. Stable and uniform dehydration is achieved.
High‑temperature instantaneous sterilization — meeting both drying and compliance requirements Based on instantaneous high‑temperature drying principles, material dehydration is completed within seconds while parasite eggs, pathogenic bacteria and fermentative micro‑organisms in manure are thoroughly eliminated. Secondary fermentation, moulding and unpleasant odours are prevented. Hazard‑free treatment is realized while organic‑matter nutrients are fully retained, complying with regulatory standards for manure resource utilization.
三、近乎无接触烘干！90%高含水鲜粪可直接进料
传统滚筒烘干必须提前掺干料、预脱水、调质处理，否则完全无法投产，额外增加大量人工与工序成本。
卧式闪蒸采用动态悬浮无接触烘干设计，物料全程悬浮于热风气流中，极少接触筒壁，彻底解决湿料粘壁、死角残留问题。
原生含水率90%的高含水鲜鸡粪，无需任何预处理，可直接进料烘干，省去调质、拌料、预干等繁琐工序，简化生产流程，大幅提升作业效率。腔体无积料、无残留，从根本上减少停机清理频次。
III. Near‑zero‑contact Drying: Direct Feeding Allowed for Fresh Manure with up to 90% Moisture Content
Traditional rotary dryers require pre‑treatment including blending with dry material, pre‑dehydration and conditioning before operation, adding substantial labour and process costs.
Adopting dynamic suspension zero‑contact drying design, the horizontal flash dryer keeps materials suspended within hot‑air streams for most of the process, with minimal wall contact. Wet‑material wall‑sticking and dead‑zone residue problems are fundamentally resolved.
Fresh chicken manure with native moisture as high as 90% can be fed directly without any pre‑processing. Cumbersome conditioning, material blending and pre‑drying steps are eliminated, production workflows are simplified and operational efficiency greatly improved. With no material accumulation or residue inside the chamber, shutdown‑for‑cleaning frequency is drastically reduced.

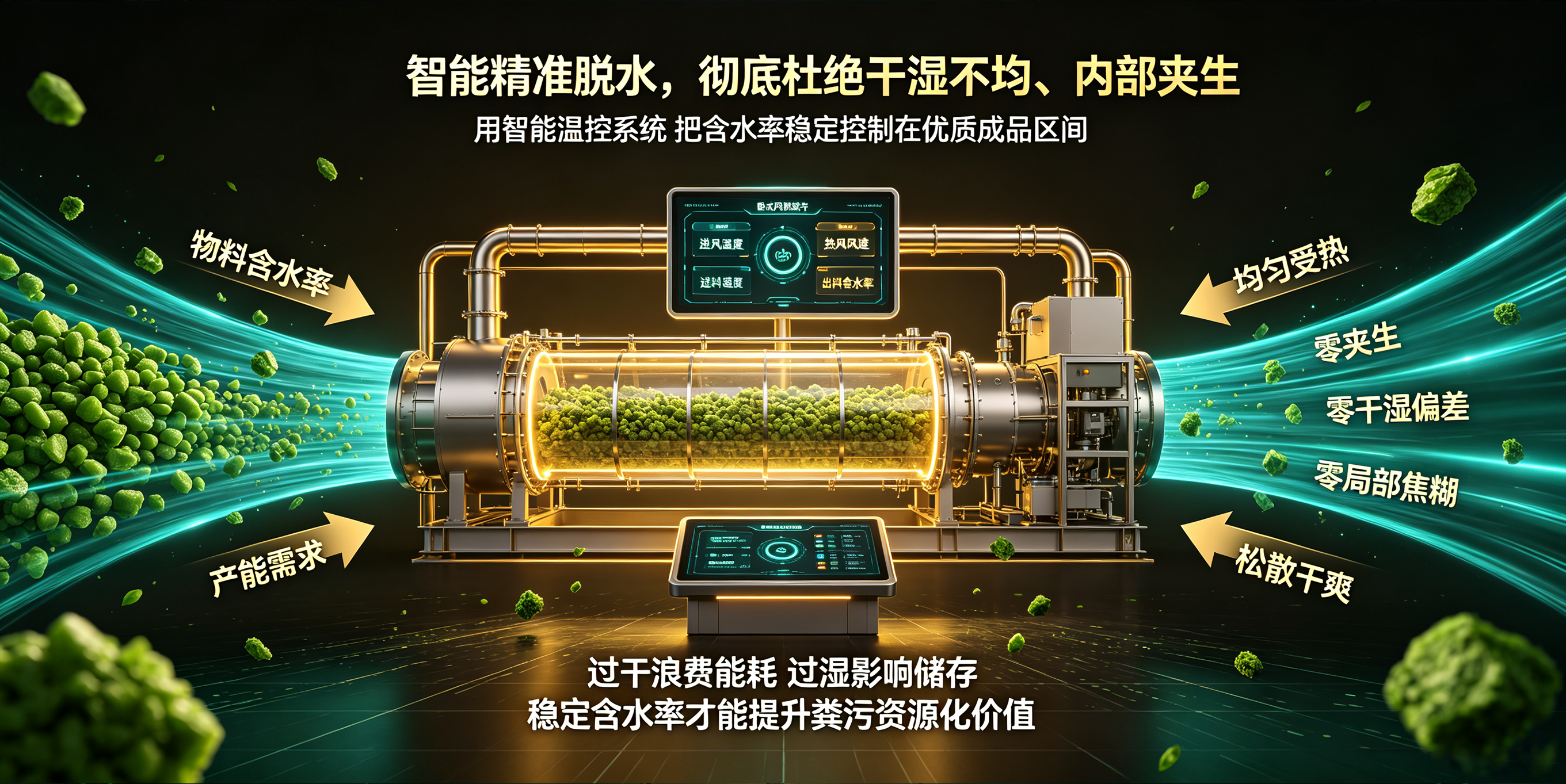

四、智能精准脱水，彻底杜绝干湿不均、内部夹生
成品含水率不稳定，是粪污资源化变现的最大阻碍：过干浪费能耗、容易扬尘，过湿容易发霉变质、无法储存外销。
金万泓卧式闪蒸搭载智能温控脱水系统，可根据物料含水率、产能需求，自动调节进风温度、进料速度、热风风速，精准把控出料含水率。
所有物料颗粒受热时间、换热面积均匀一致，零夹生、零干湿偏差、零局部焦糊，成品干粪松散干爽、品质统一可控，无论是自用制肥还是外销有机肥厂、种植基地，都能达到优质标准。
IV. Intelligent Precision Dehydration: Fully Eliminating Moisture Inconsistency and Half‑cooked Material
Unstable finished‑product moisture constitutes the biggest barrier to monetizing manure‑resource projects. Over‑drying wastes energy and generates dust; insufficient drying causes mould deterioration and prevents storage or external sales.
Equipped with an intelligent temperature‑controlled dehydration system, Jinwanhong horizontal flash dryers automatically adjust inlet‑air temperature, feed rate and hot‑air velocity according to incoming‑material moisture and throughput targets for precise control over output moisture content.
All material particles experience consistent heating duration and heat‑exchange area. No half‑cooked product, no moisture deviation and no local scorching occur. Output dried manure is loose, dry and uniformly‑quality. It meets premium‑grade standards whether used for on‑site organic‑fertilizer production or sold externally to fertilizer plants and planting bases.
五、24小时全自动连续作业，适配规模化养殖刚需
规模化养殖场粪污24小时持续产出，对设备连续作业能力要求极高，频繁停机、产能不足只会造成粪污积压，引发环保隐患。
卧式闪蒸整套设备搭载全自动闭环控制系统，实现自动上料、动态烘干、除尘除臭、连续出料一体化作业，可24小时不间断稳定运行，不受天气、人工影响。
设备有效作业率高、产能稳定，轻松承接大批次粪污处理任务，彻底解决规模化鸡场、养殖产业园粪污日产日清难题，适配常态化、标准化、规模化生产需求。
V. 24‑hour Fully‑automatic Continuous Operation for the Rigid Demands of Large‑scale Breeding
Large‑scale farms generate manure continuously around the clock, placing high demands on uninterrupted equipment operation. Frequent shutdowns or insufficient throughput lead to manure stockpiling and potential environmental‑protection risks.
The complete horizontal flash‑drying unit features a fully‑automatic closed‑loop control system, integrating automatic feeding, dynamic drying, dust and odour removal, and continuous discharging. Stable non‑stop 24‑hour operation is achieved independent of weather conditions or manual interference.
High equipment availability and stable throughput reliably handle large‑volume manure‑treatment assignments. The system solves the challenge of daily manure disposal for large‑scale chicken farms and breeding industrial parks, supporting regular, standardized and large‑scale production requirements.
六、工艺全方位对比：动态闪蒸完胜传统静态烘干
对比传统滚筒、简易烘干设备，卧式闪蒸动态工艺在能耗、人工、运维、稳定性上实现全面升级：
✅ 能耗更低：悬浮流化换热热效率大幅提升，热量利用率高，同等处理量下，综合能耗降低20%-30%，长期运行节省大量电费、燃料成本；
✅ 人工更少：无需人工拌料、调质、频繁清堵，全自动运行，1-2人即可值守整条产线，大幅缩减人工成本；
✅ 运维极简：无粘壁、无堵料、无积料，设备故障频次极低，易损部件耐用性强，免去频繁维修、更换的麻烦；
✅ 性价比更高：一次性设备投入，长期低能耗、低运维、高产能、高品质产出，综合回本速度远超传统老旧设备。
VI. Comprehensive Process Comparison: Dynamic Flash Drying Outperforms Conventional Static Drying
Compared with traditional rotary drums and simple drying equipment, the horizontal flash dynamic process delivers all‑round improvements in energy consumption, labour input, maintenance and operational stability: ✅ Lower energy consumption: Greatly enhanced heat‑exchange efficiency via suspension fluidization improves heat utilization. For equivalent throughput, overall energy consumption drops by 20%‑30%, yielding substantial long‑term savings on electricity and fuel costs; ✅ Reduced labour requirements: No manual material blending, conditioning or frequent unclogging. Fully automatic operation allows one to‑two operators to oversee the entire production line, significantly cutting labour expenditure; ✅ Minimal maintenance: Free of wall‑sticking, clogging and material accumulation. Equipment failure rates are extremely low. Wear‑resistant consumable components reduce the burden of frequent repairs and replacements; ✅ Higher cost‑performance: One‑time capital outlay delivers long‑term low‑energy, low‑maintenance, high‑capacity, high‑quality output. Overall payback is far faster than for ageing conventional equipment.
七、技术迭代升级，适配复杂工况，延长设备使用寿命
依托多年固废烘干实操经验，金万泓针对卧式闪蒸设备完成多轮技术迭代，聚焦高粘粪污复杂工况优化升级：
1. 打散转子采用高耐磨材质，优化结构弧度，抗粘、抗磨、抗冲击，长期高速运行不变形、不卡顿；
2. 腔体流场结构优化，消除烘干死角，杜绝局部积料、粘料，设备运行更稳定；
3. 全密闭负压密封结构升级，杜绝异味、粉尘外泄，环保达标不扰民；
4. 智能联动控制系统迭代，自动适配不同湿度、粘度的粪料，自适应调节工况，降低操作门槛，适配各类复杂养殖工况，大幅延长设备整体使用寿命。
VII. Technical Iteration Upgrades: Adaptation to Complex Operating Conditions and Extended Service Life
Drawing on years of practical solid‑waste‑drying experience, Jinwanhong has completed multiple rounds of technical upgrades for horizontal flash dryers, optimizing performance for complex high‑viscosity‑manure working conditions:
Disintegration rotors adopt high‑wear‑resistance materials with optimized curved geometry for anti‑adhesion, wear‑resistance and impact‑resistance. No deformation or jamming occurs under prolonged high‑speed operation;
Optimized chamber flow‑field structure eliminates drying dead zones and local material accumulation or sticking for more stable equipment performance;
Upgraded fully‑sealed negative‑pressure sealing structure prevents odour and dust leakage, ensuring environmental compliance without public nuisance;
Iterated intelligent linked‑control system automatically adapts to manure with varying moisture and viscosity and adjusts operating parameters accordingly. Lower operational thresholds support diverse complex breeding‑site conditions and substantially extend overall equipment service life.
写在最后
烘干设备好不好，参数是其次，工艺适配才是核心。
处理高粘养殖粪污，静态烘干是强行适配、漏洞百出，卧式闪蒸动态流化工艺才是量身定制的最优解。从根源解决粘壁、堵料、夹生、干湿不均、能耗过高五大行业痛点，让粪污烘干更稳定、更省钱、更合规、更赚钱。
想要查看设备运行实景、定制专属烘干方案，欢迎咨询金万泓机械，源头工厂专注疑难固废烘干，助力养殖场合规增效、稳定增收！
When evaluating drying equipment, technical parameters are secondary. Process‑application compatibility is paramount.
For treating high‑viscosity livestock manure, static drying represents a forced fit riddled with flaws. The horizontal flash dynamic fluidized‑bed process is the tailor‑made optimal solution. It addresses five major industry pain points at source: wall sticking, material clogging, half‑cooked output, moisture inconsistency and excessive energy consumption. Manure drying becomes more stable, cost‑effective, compliant and profitable.
To view on‑site equipment‑operation footage or obtain a customized drying solution, please contact Jinwanhong Machinery. As a source manufacturer specializing in hard‑to‑treat solid‑waste drying, we help farms achieve compliance‑driven efficiency gains and stable additional revenue.
